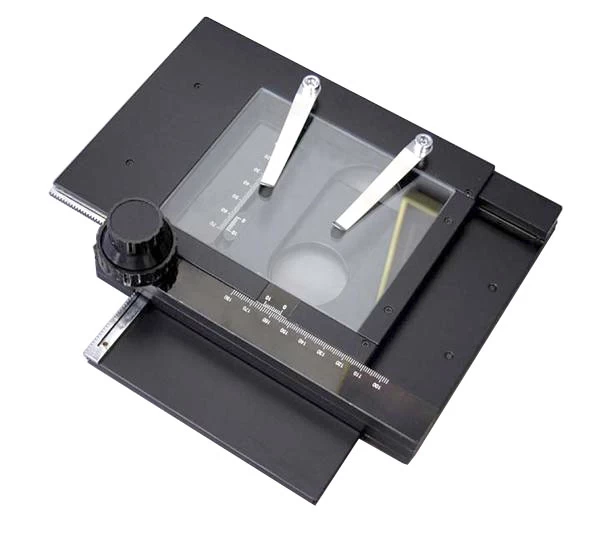

Mechanical stage with fine movements for stereo microscopes

This scope stage fine movement - specifically designed for stereomicroscopes - allows you to move the objects under the microscope precisely and smoothly in different directions. It is primarily recommended for our SZM series microscopes.

Since stereo microscopes - unlike biological microscopes - are not equipped with a stage for fine movements, this leaves the less professional and especially less comfortable "manual method", i.e. manual movement of objects and materials under the microscope, which can be particularly troublesome for higher magnifications or precision work. Now, however, you can replace this cumbersome and inconvenient method with a truly professional solution

Simply place the fine-movement stage on the microscope stand and the object to be examined on top - then move it precisely and comfortably in the microscope's field of view using the stage knobs on the stage. With this solution, you can achieve comfortable, accurate, precise stepping in both forward-backward and right-left directions, even at the highest magnifications. You can also place a slide on the stage with the object to be scanned/illuminated, as the stage is also equipped with conventional slide hold-down levers.

A simple but important convenience during observation is that the fine-movement stage is equipped with large adjustment knobs, which allow you to move the object of interest easily and very comfortably within the field of view of the microscope.

Technical specifications of the microscope stage:

• Overall range of movement: 75 mm
• Front-to-back movement: 56 mm
• Detailing table dimensions (width, height, thickness): 180 x 155 x 27 mm
• Finishing table glass top dimensions: 116 x 96 mm
//ul>
Package prices
Customer reviews (1)
Product specs
Gallery
Bago Balazs (Piliscsaba)
2020. 11. 20.

4.0
Mechanical stage with fine movements for stereo microscopes

Advantage: Precíz mozgatás, nagy mozgási lehetőség x és y irányban.
Disadvantage: A tárgyasztal alján nincs borítás
A tárgyasztal alján nincs borítás (pl. öntapadós gumilemez), így karcolhatja a mikroszkópot, ráadásul könnyen el is foroghat. Egy plusz gumilemez felragasztásával a probléma megoldódott.
