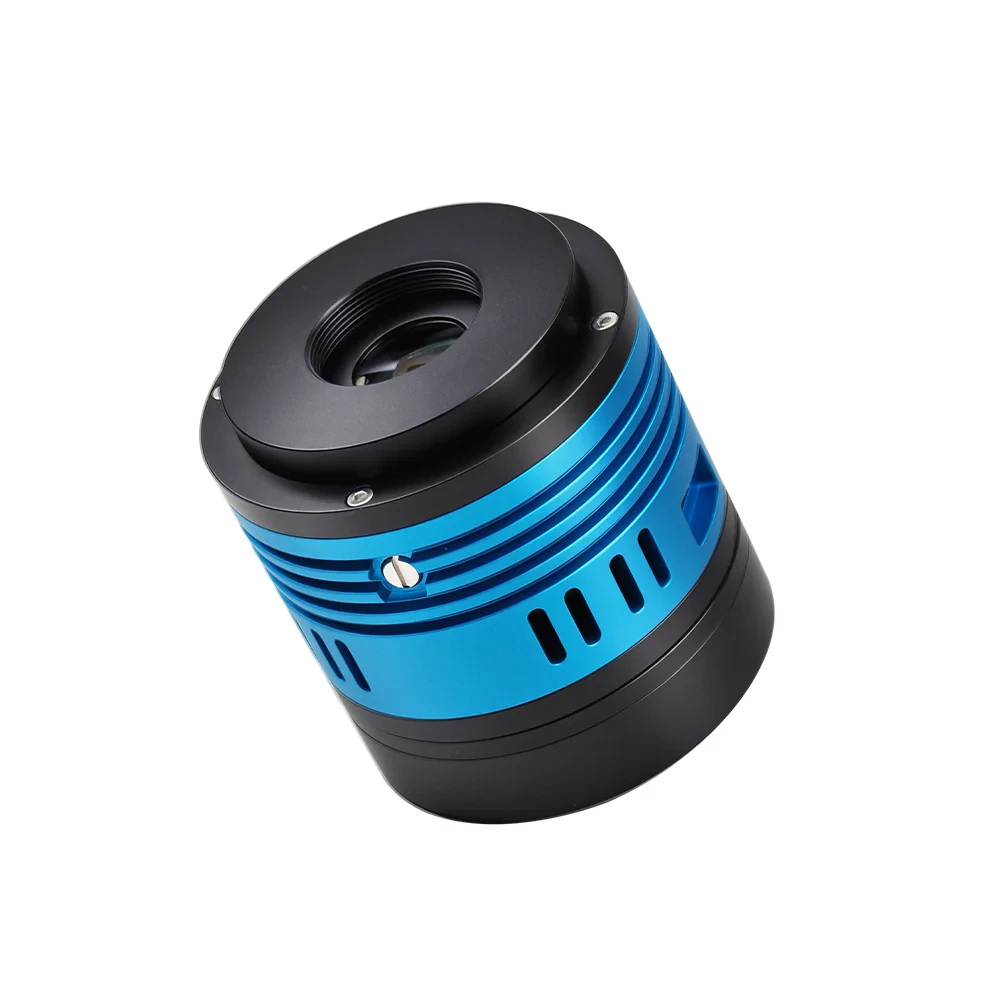

The ToupTek AE676M monochrome cooled camera is a versatile device and an excellent choice for those who want to use a single camera across multiple applications. It is particularly well suited for lunar and planetary imaging, while its active cooling also makes it an ideal entry point into the world of false-colour deep-sky astrophotography.

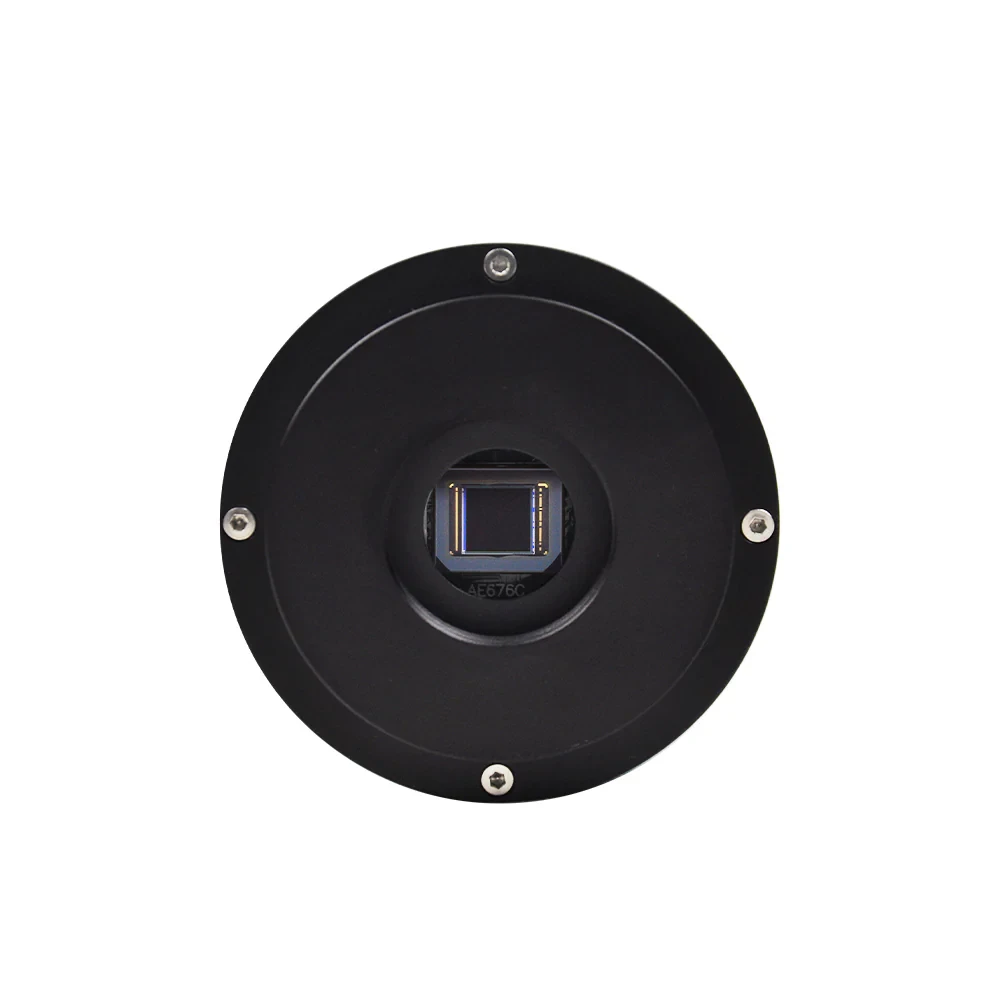

At the heart of the device is the Sony IMX676 monochrome CMOS sensor, which delivers high sensitivity, low noise and detailed imaging thanks to its Starvis 2.0 technology. Its 12-bit colour depth can be expanded to 16 bits via software, allowing exceptionally fine details to be captured. The 3536 × 3536-pixel resolution and 2 µm pixel size provide an excellent balance between detail and versatile use. The square sensor is particularly advantageous for imaging the solar and lunar discs, as well as for creating mosaics, where the symmetrical field of view enables more convenient composition and more efficient use of the image area.

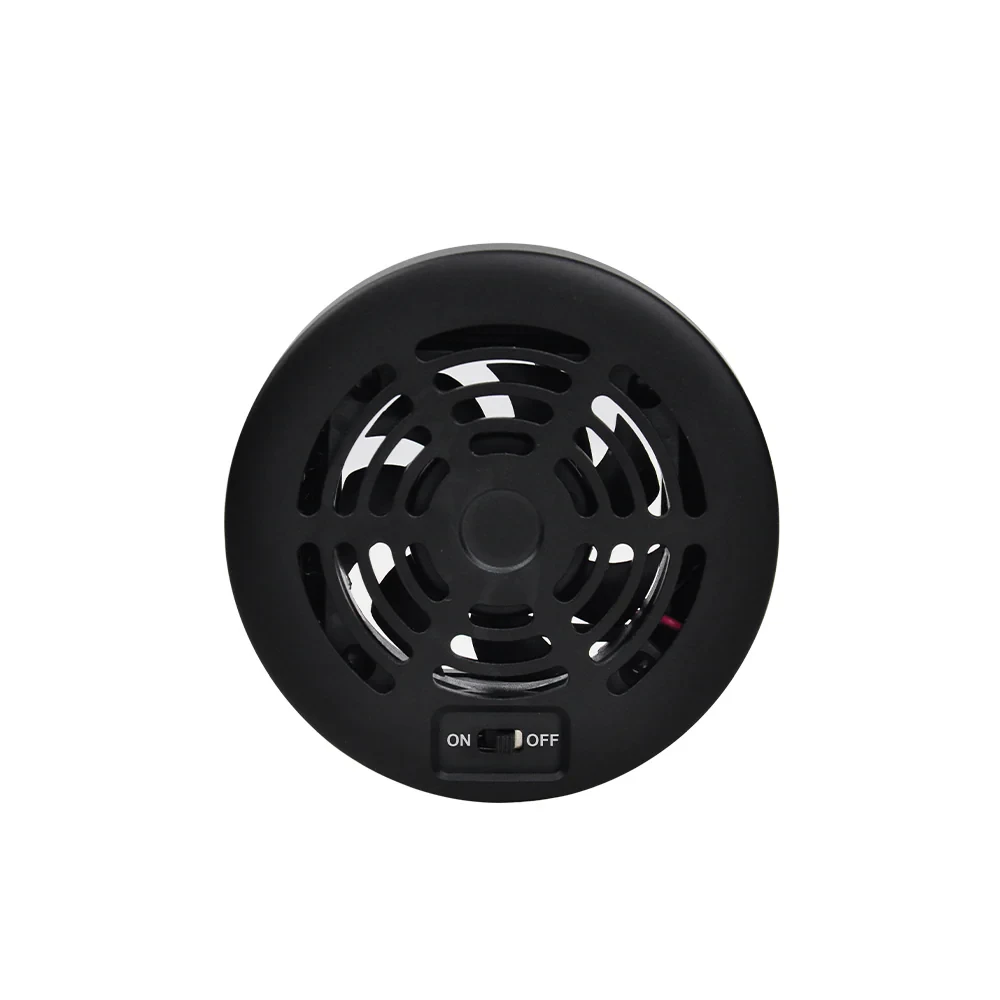

The camera uses fanless Peltier cooling, which generates no vibration, making it especially practical for high-resolution lunar and planetary imaging. The magnetically attachable external cooling unit can reduce the sensor temperature by up to 20 °C below ambient temperature, enabling even lower-noise raw images during longer exposures. Convenience is further enhanced by the fact that the cooling unit does not require an external 12 V power connection.

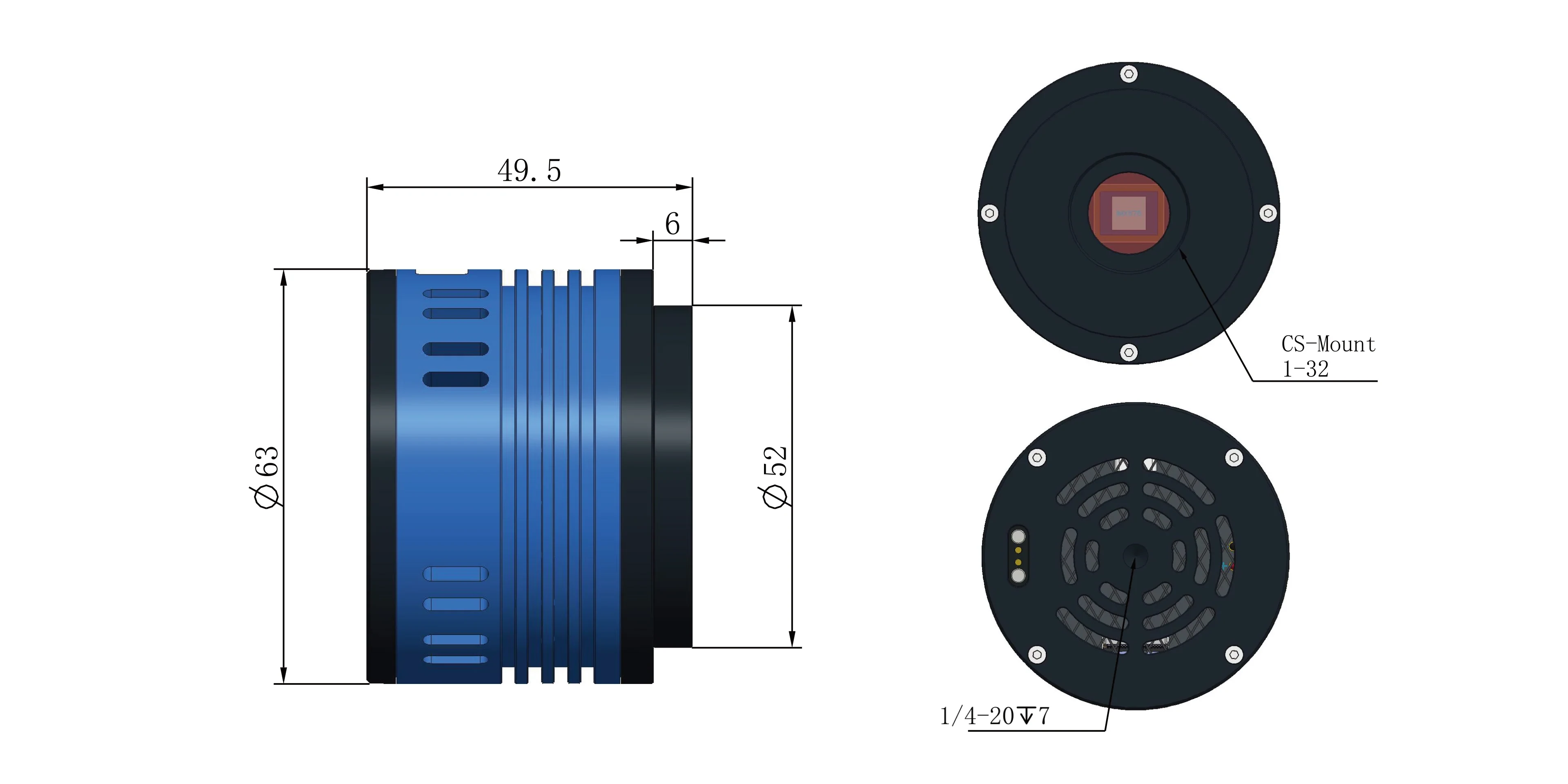

Fast data transfer is ensured by the USB 3.0 connection, while stable and reliable operation is supported by a 512 MB DDR3 memory buffer. With an outer diameter of 63 mm, the camera is a good match for the SkyWatcher HAC125DX astrograph.
The camera offers several connection options for attaching it to a telescope: the package includes a 1.25" adapter and a T2 threaded ring, providing the standard 17.5 mm backfocus distance.
Thanks to its compact design and versatility, the ToupTek AE676C camera is an ideal choice for beginner and advanced astrophotographers looking for an easy-to-use, modern device for capturing the night sky.
Package contents of the ToupTek AE676M monochrome camera:
- ToupTek AE676M monochrome cooled camera
- Magnetic cooling unit
- M42F–M42F (11 mm) adapter
- 1.25" adapter
- CS–C (5 mm) adapter
- CS wide-angle lens
- LP825 IR-pass filter
- USB 3.0 cable (1.5 m)
