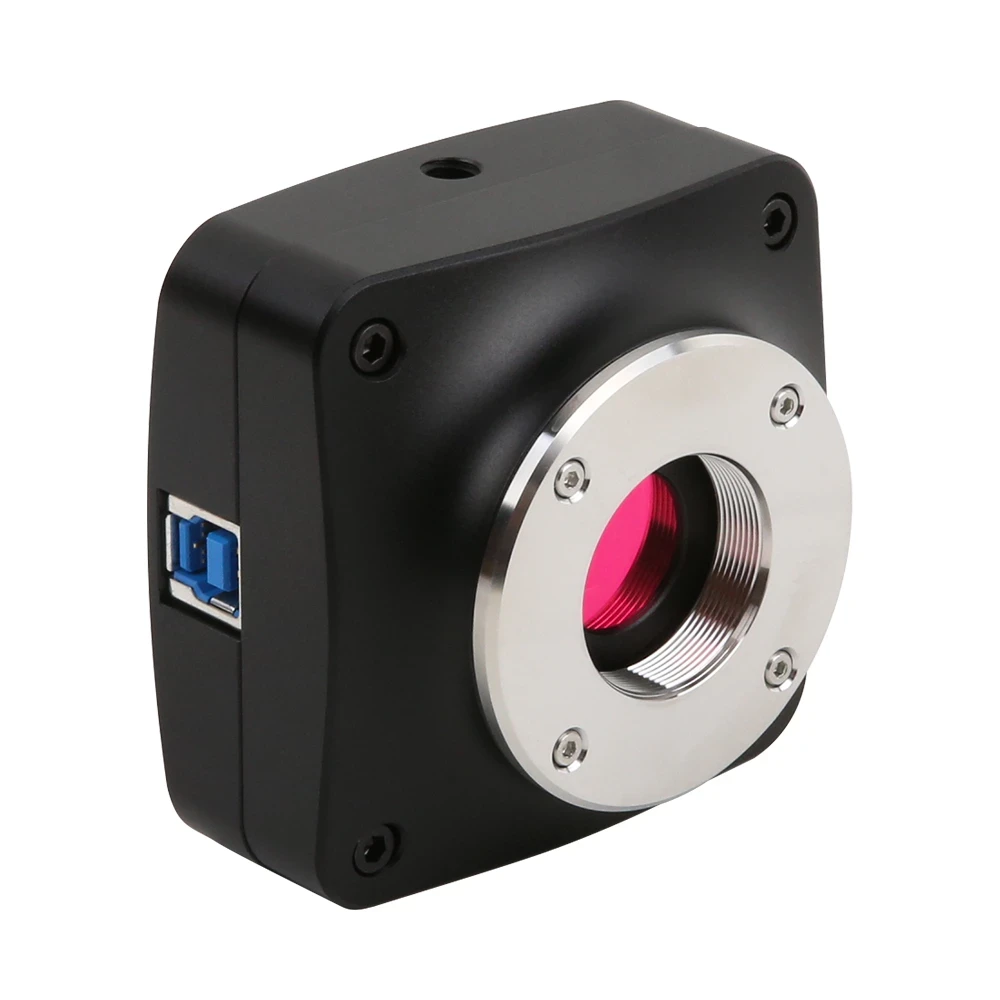

ToupCam CM Pro 12 MP microscope camera features an unusually sensitive 12-megapixel sensor, high frame rates (FPS), and an integrated image signal processor (ISP) that provides real-time image correction.
The device uses a back-illuminated Sony image sensor, ensuring efficient light utilisation, excellent image quality, and highly detailed imaging.
The camera is suitable for observing biological specimens, cells, and tissues; fluorescence microscopy applications; inspection of electronic components; and detailed material analysis. It is widely used in research laboratories, educational institutions, and industrial applications.

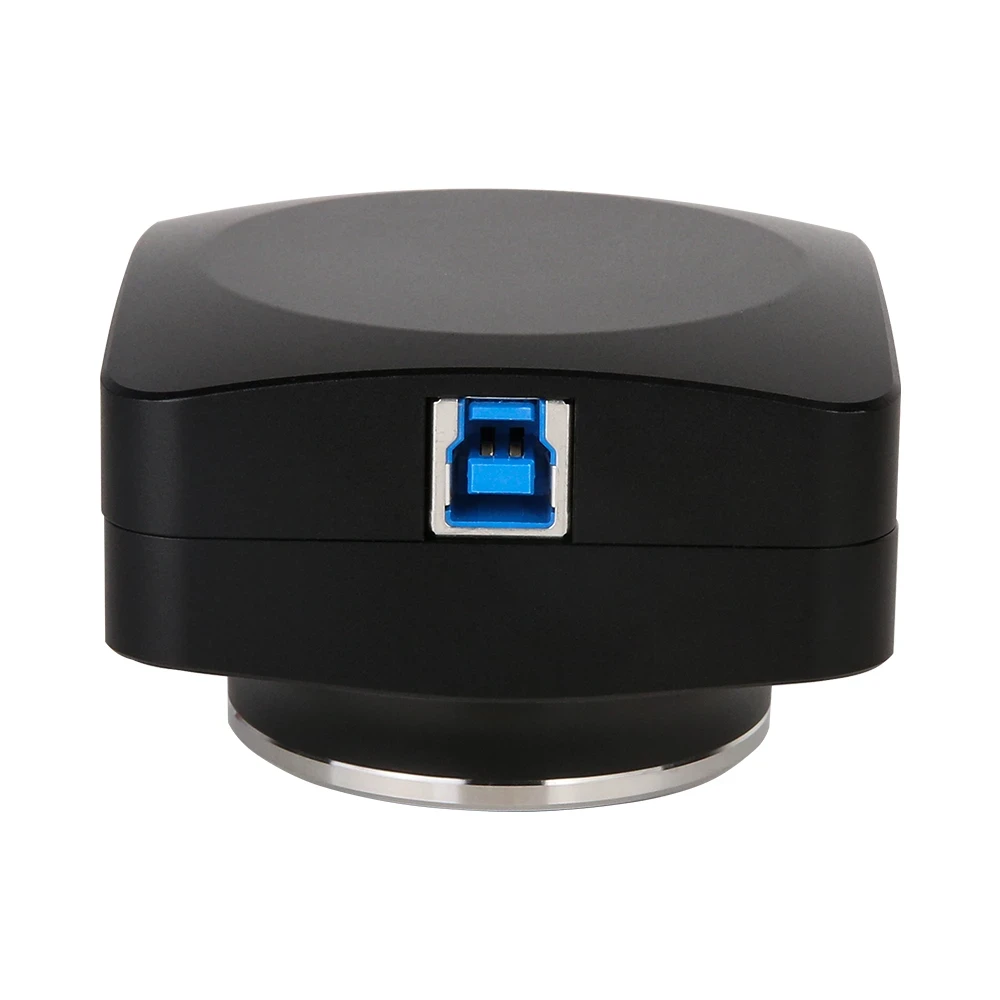

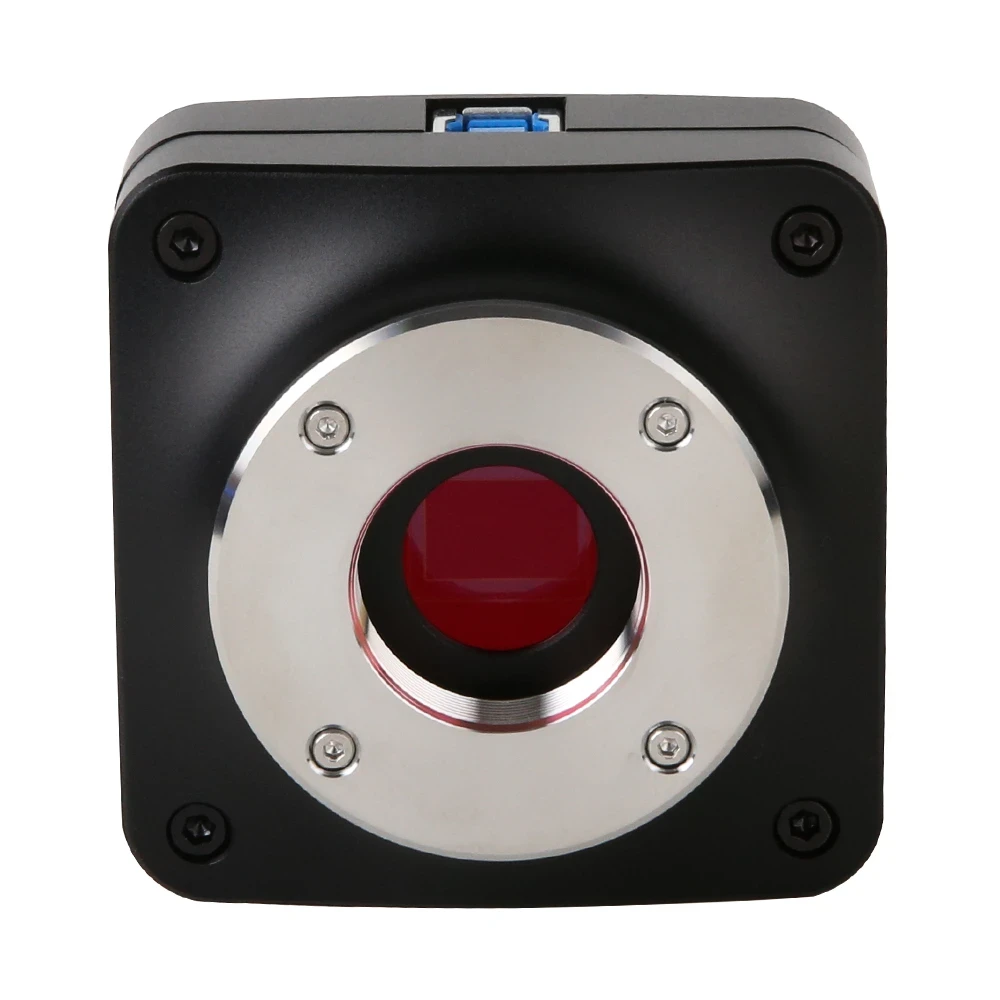

Most optical microscopes accept microscope cameras via a C-mount connection or can be adapted accordingly. The camera can be fitted to compatible biological and stereo microscopes via its C-mount connection. Power supply and data transfer are provided via a USB 3.0 connection.
Key features:
- 12 MP square sensor (3536×3536)
- High-sensitivity IMX676 sensor
- 2.0 µm pixel size
- 27 fps at 3536×3536; 60 fps at 1768×1768 in preview mode
- Optimised hardware noise reduction
- Intelligent image processing
- 8/12-bit output
- USB 3.0 connection
