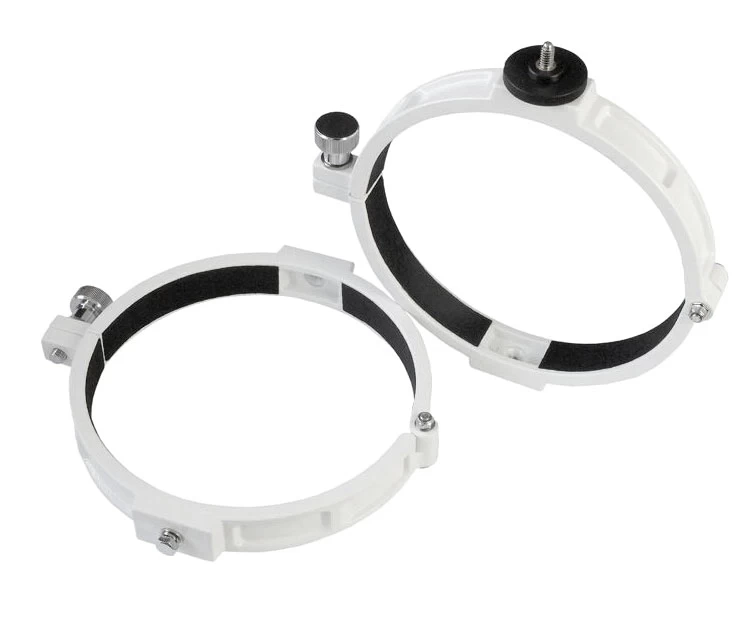

The tube ring pairs and tube rings connect our telescopes to the carrying mechanism - so the use of these rings is essential for medium and larger telescopes, and necessary for smaller telescopes when using precision mechanisms.
In the opening rings, we insert the tube (see photos), and then close the ring with the screws - this "captures" our scope. Then we attach the chosen prismatic lens to the bottom of the ring , which can then be easily inserted into the specially designed part of our mechanism. And you have your skywatcher ready to go.
In addition to "holding" the telescope, tube rings have other, additional functions - in many cases they become carriers themselves. At their upper point, opposite the prismatic lens, they can optionally be used to hold a variety of devices: a camera, a guide ring with a guide telescope (for astrophotography), etc.
The rings are made of aluminium - this ensures both lightness and a strong and solid support for your favourite and precious telescope.
The table below shows the various ring pairs of different sizes for which types and sizes of telescope tubes are offered.
| Tube ring pair with 75 mm diameter | SkyWatcher 70 mm lens binoculars |
| Tube ring pair with 89 mm diameter | SkyWatcher 80/90 mm lens binoculars |
| Tube ring pair with 101 mm diameter | SkyWatcher 102 mm lens binoculars |
| Tube ring pair with 116 mm diameter | SkyWatcher 120 mm lens binoculars |
| Tube ring pair with 140 mm diameter | SkyWatcher 114 mm Newtonian telescope |
| Tube ring pair with 142 mm diameter | SkyWatcher 150 mm lens scope, and also fits the 127/1500 MC. |
| Tube ring pair with 160 mm diameter | SkyWatcher 130 mm Newtonian telescope |
| Tube ring pair with 183 mm diameter | SkyWatcher 150 mm Newtonian telescope |
| Tube ring pair 235 mm diameter | SkyWatcher 200 mm Newtonian telescope |
| Pair of 283 mm diameter tube rings | SkyWatcher 250 mm Newtonian telescope |
| Tube ring pair with 354 mm diameter | SkyWatcher 300 mm Newtonian telescope |
