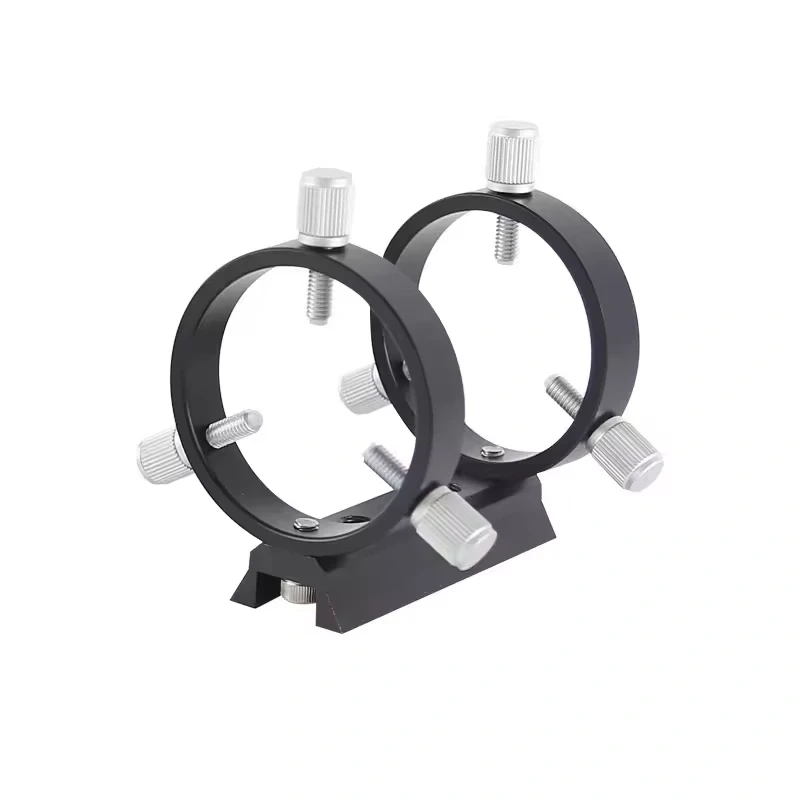

60 mm Guide Scope Ring Set with Mini Dovetail Bar provides secure and precise mounting for guide scopes in astrophotography and autoguiding systems. The rings are compatible with guide scopes featuring an outer tube diameter of 38–58 mm.
The adjustment screw design allows the guide scope to be aligned slightly differently from the main telescope’s field of view, making it easier to select a suitable guide star. Plastic-tipped tube mounting screws protect the tube from scratches.
The tube rings and mini dovetail bar are made from anodized aluminium alloy, providing adequate rigidity and durability while keeping weight low. The rings feature M5 threaded holes.
The mini dovetail bar measures 90 mm in length and 31 mm in width and can be mounted in a finder shoe. It features a 1/4" tripod thread in the centre, along with two M8 threaded holes.
- 60 mm inner diameter guide scope ring set with mini dovetail bar
- Recommended for outer tube diameters of approx. 38–58 mm
- Anodized aluminium alloy construction
- Adjustment screws for fine alignment
- Plastic-tipped screws to prevent scratches
- M5 threaded holes on the rings
- 90 × 31 mm mini dovetail bar
- 1/4" tripod thread and 2 M8 threaded holes in the bar
