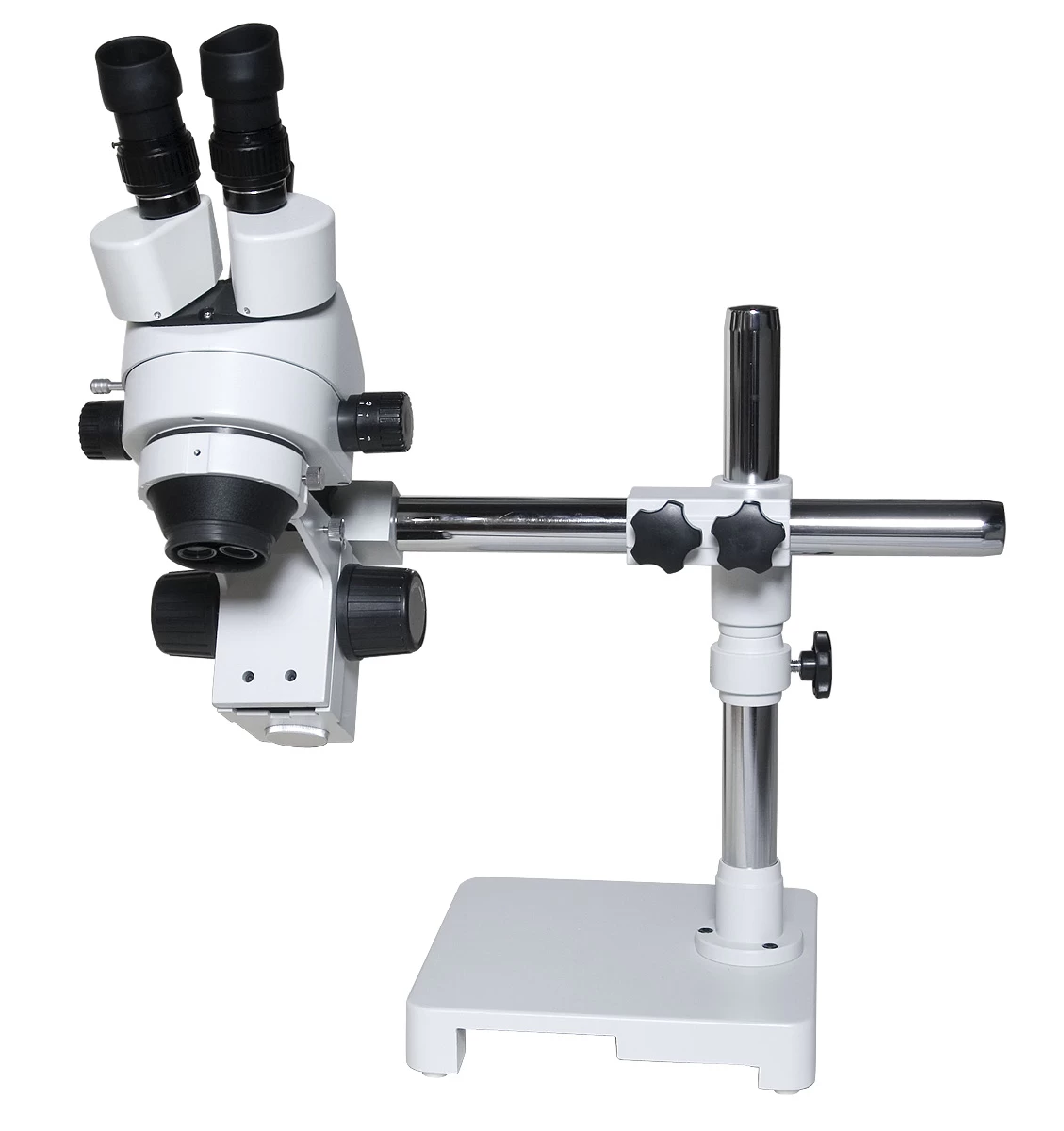

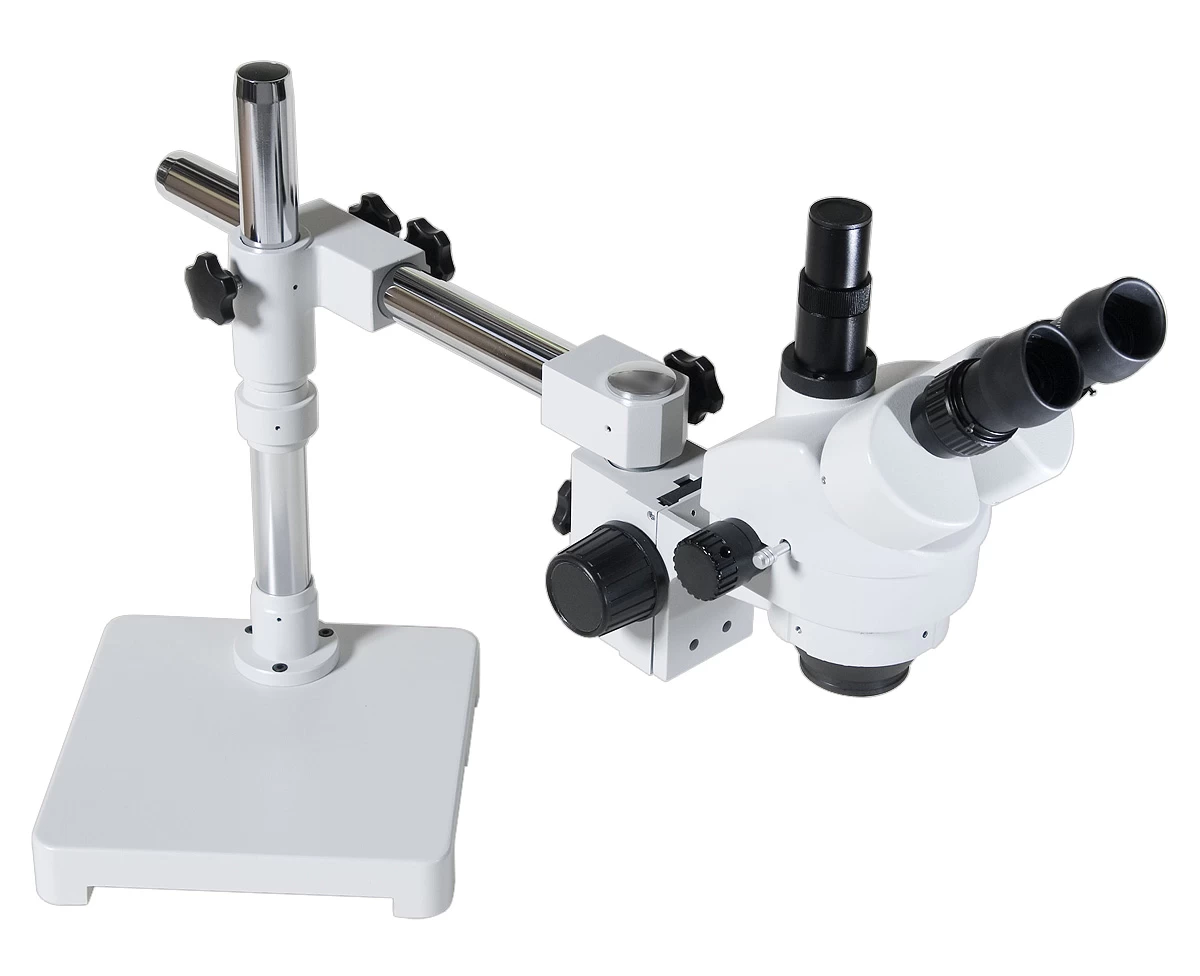

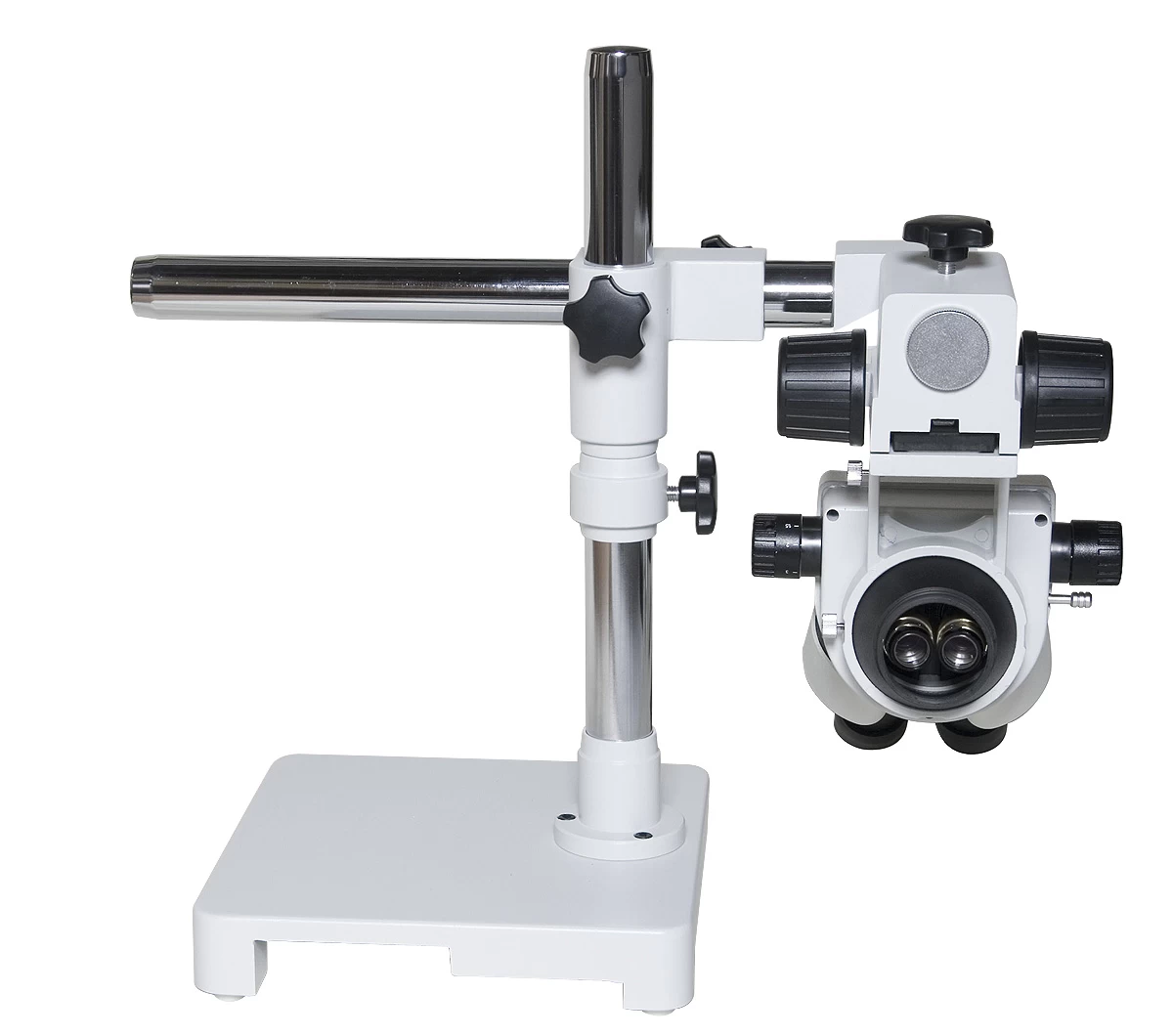

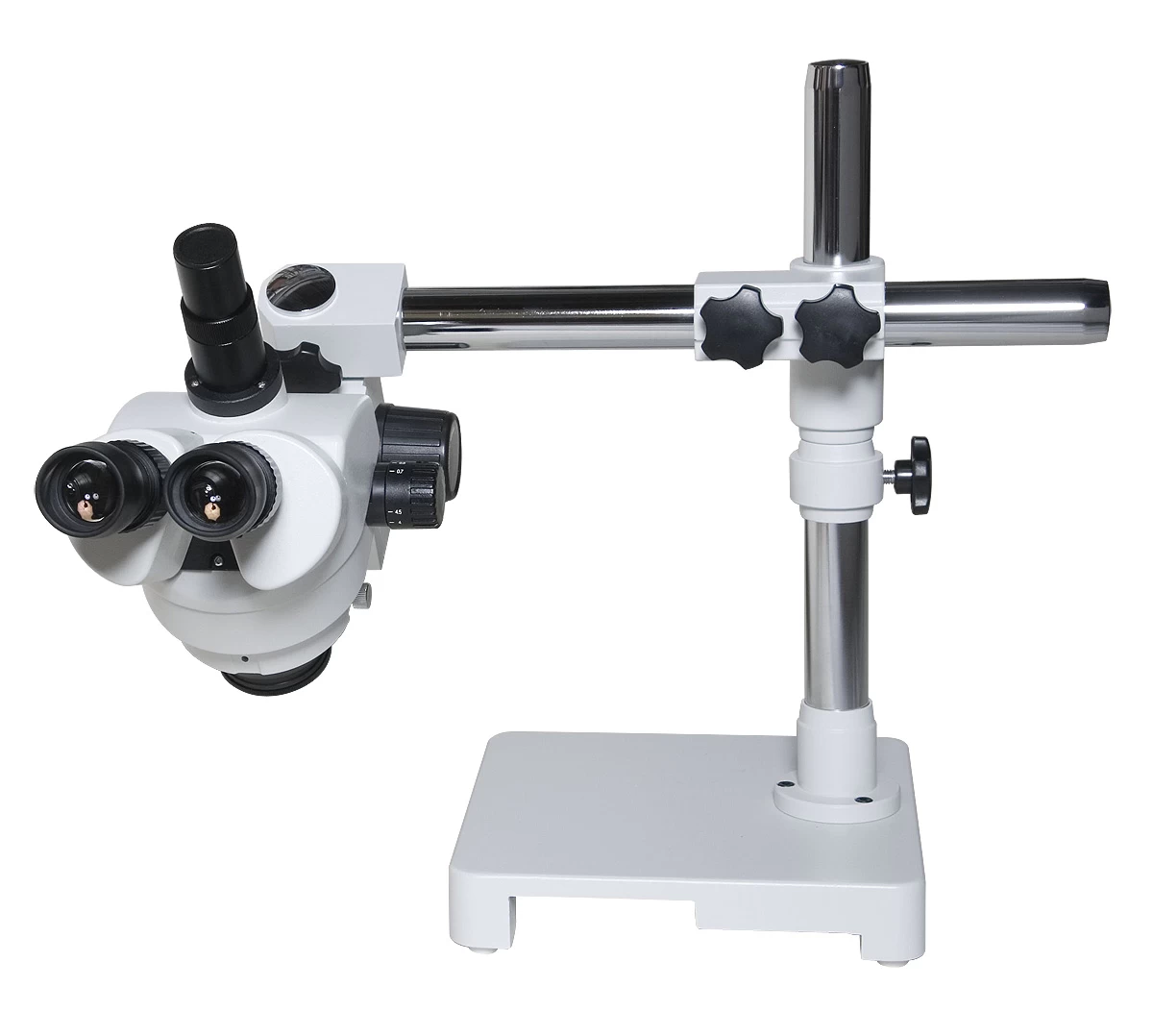

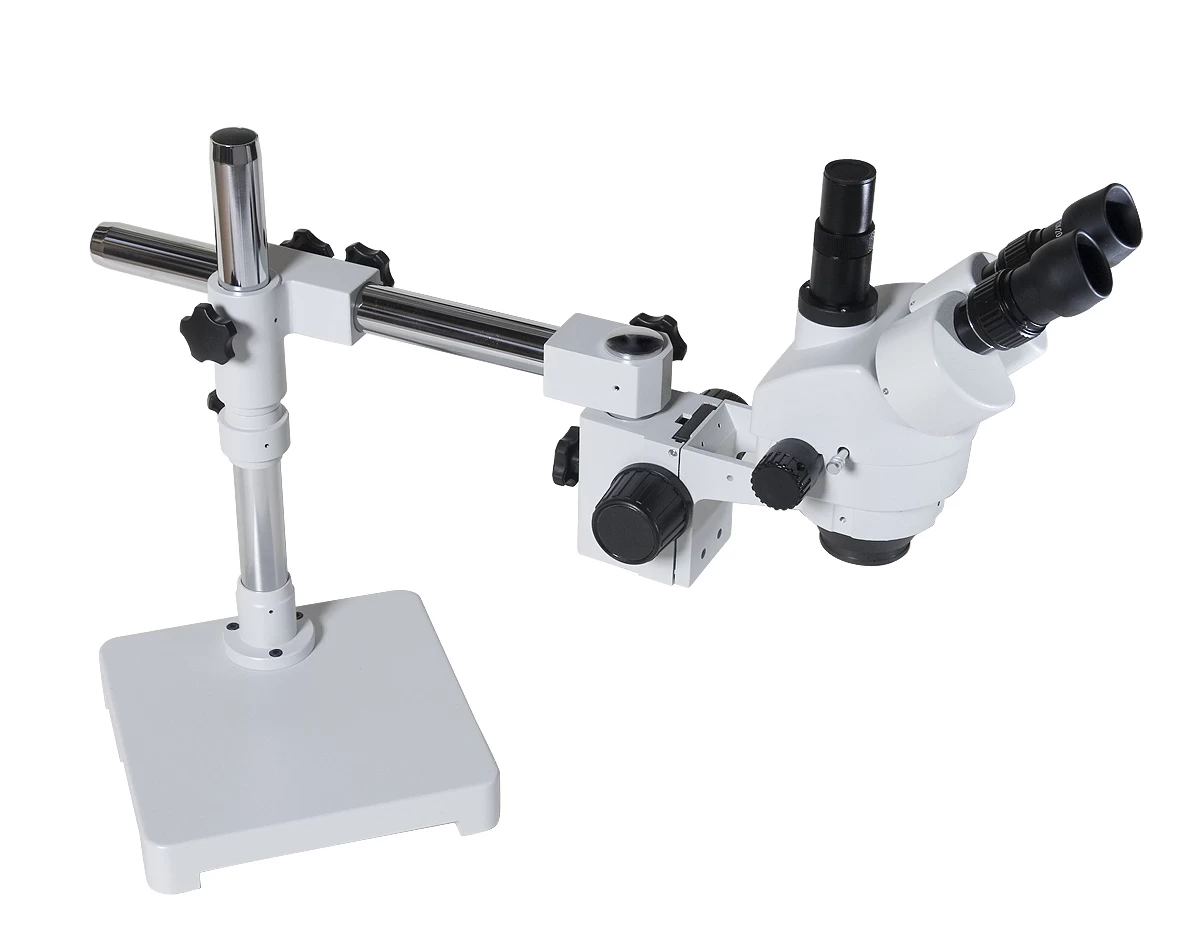

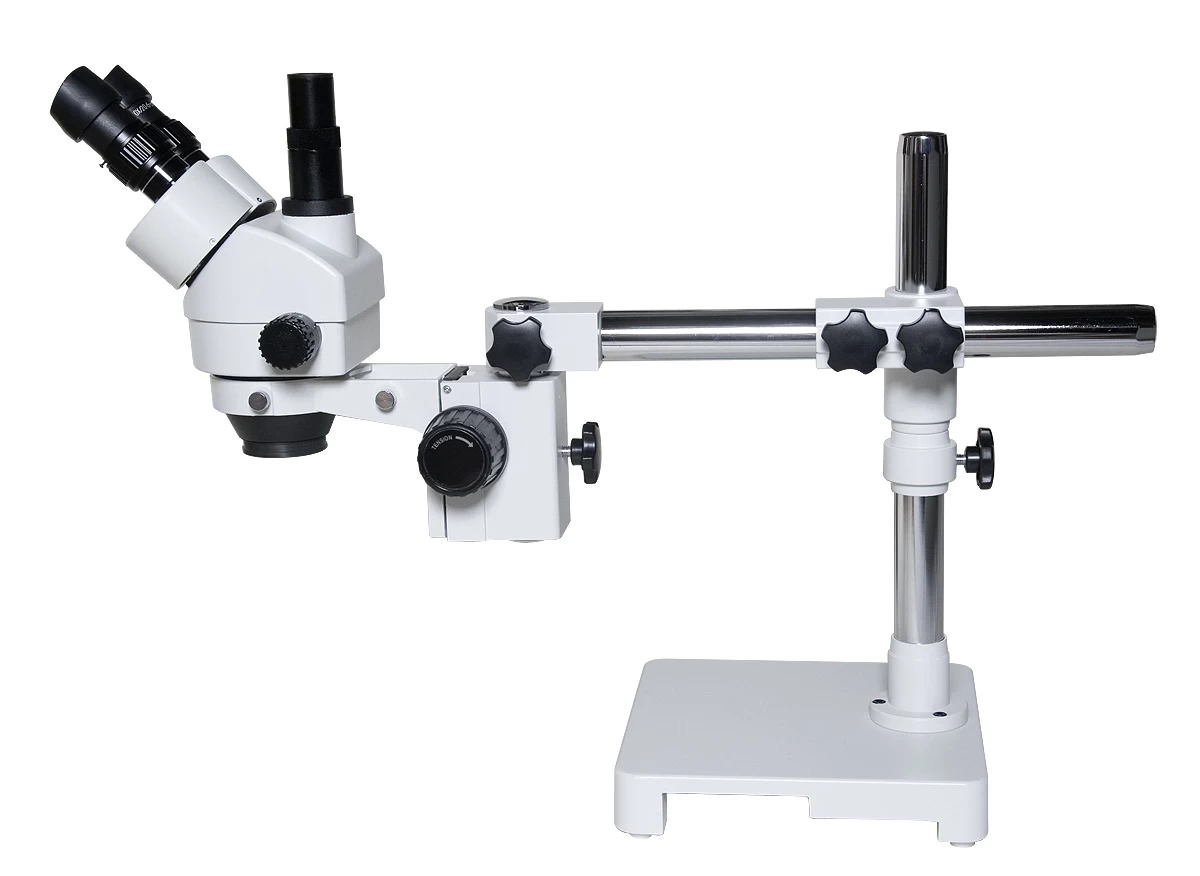

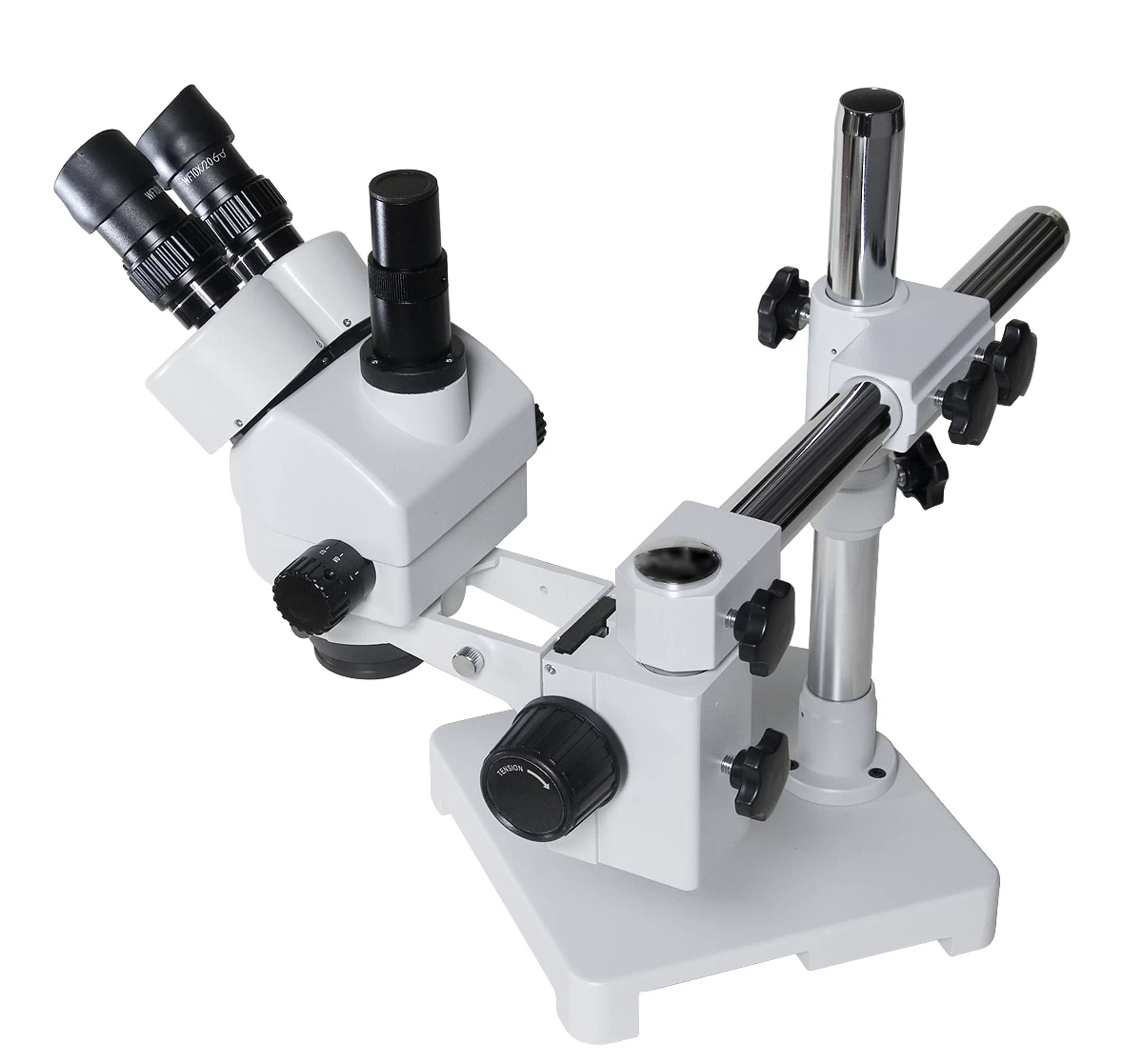

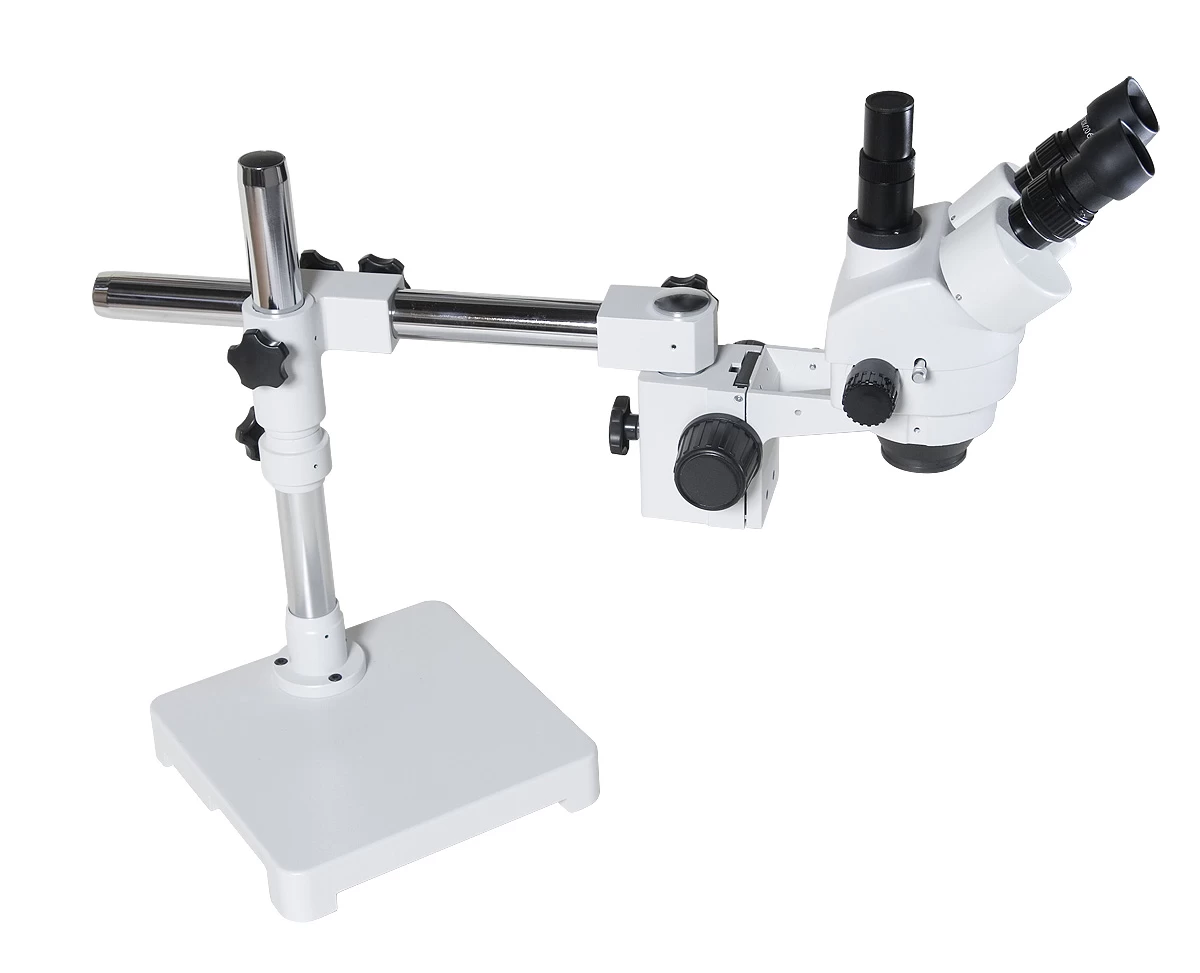

Stereo-microscopes owe their popularity to their wide range and ease of use. Our SZM-600T microscope is recommended primarily for industrial use, thanks to its stand-on-arm design.
The SZM-600T microscope is equipped with a 0.7x-4.5x zoom objective, which allows for stepless adjustment between 7x and 45x magnifications with the standard WF10x eyepiece. The eyepiece has an outstandingly large field of view: at 7x magnification, it gives a field of view of 28.6 mm. Thanks to its complex construction, it provides a contrasty image with a sharp image right to the edge of the field of view. The trinocular microscope head can be slid up and down on a rod up to a maximum height of 380 mm, and can even be tilted sideways up to 420 mm, allowing objects of virtually any size to be placed under the microscope. The microscope head has a 23.2 mm diameter camera connection, which can be switched to provide light to both eyepieces or to one eyepiece and the camera. There is 100 mm of space under the eyepieces for work, which can be increased to 165 mm with an optional 0.5x reducer lens.
The microscope does not have illumination, so the use of some form of external illumination is highly recommended. By fitting the rubber eye cap included in the package to the top of the eyepieces, side scattered light can be excluded, making observations more comfortable.
The trinocular head is tilted at 45° and its eye relief is freely adjustable between 55-75 mm. Dioptric correction is available on both sides. The basic package also includes a sturdy cover sheet to protect the microscope from dust when not in use.
