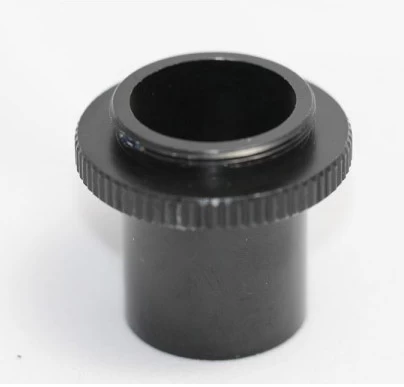

Our ToupCam and ToupCam XW microscope cameras can be mounted in a 23.2 mm diameter eyepiece mount, while the ToupCam UHP version is C-mount. The table below summarises which camera adapter is required for each microscope model.
| Microscope | 23.2 mm camera | C-mount camera |
| XSP-30 series | No adapter required | C-mount / 23.2 mm adapter OR ToupTek 0.5x reducer lens |
| XSP-151 series | No adapter required | C-mount / 23.2 mm adapter OR ToupTek 0.5x reducer lens |
| XSP-251T (*) |
No adapter required |
C-mount / 23.2 mm adapter OR ToupTek 0.5x reducer lens |
| XTD series | 23.2 mm / 30.5 mm adapter | (C-mount / 23.2 mm adapter OR ToupTek 0.5x reducer lens) AND 23.2/30.5 mm adapter |
| SZM-200A, SZM-250A, SZM-400A, SZM-450A, SZM-500A, SZM-600A, SZM-650A | 23.2 mm / 30 mm adapter |
(C-mount / 23.2 mm adapter OR ToupTek 0.5x reducer lens) AND 23.2/30 mm adapter |
| SZM-200T, SZM-250T, SZM-400T, SZM-450T, SZM-500T, SZM-600T, SZM-650T (*) |
No adapter required |
C-mount / 23.2 mm adapter OR ToupTek 0.5x reducer lens OR C-mount adapter for SZM microscope |
(*) If you want to use the camera in the eyepiece instead of the trinocular port, you will need a 23.2 mm / 30 mm adapter
